Hybrid Security Systems combine Electromagnetic (EM) and Radio Frequency Identification (RFID) technologies in a single device.

Security Detection System Diamond Premium Hybrid EM / RFID

The Diamond Premium Hybrid Library Security System combines EM and RFID technologies in a single device to provide you with the benefits of:

  • Double security;
  • Maintaining Electromagnetic technology, the standard in library security;
  • Implementing RFID security, the future of libraries;
  • Allowing multiple loans in a single operation;
  • Accelerating book identification;
  • Starting a self-service culture in your library.

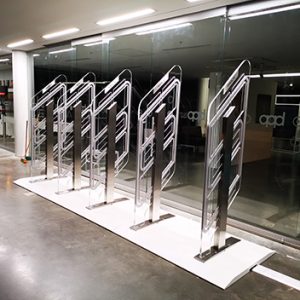

In addition to all of the above, its transparent design made of Plexiglas and stainless steel provides a luxurious appearance that fits well in any library environment.



International Certifications:
Directives 1999/519/EC, R&TTE 1999/5/EC
Directives 89/366/EEC, ETSI, FCC, CE

PDF Catalog
Send us a Whatsapp
Write us an email!
Get a Quote Now
Categories:, , , , ,
Tags:, , , ,

Features and Performance

Features and Performance

Excellent Performance: The 3-D detection of EM strips or RFID tags is high-speed and has a distance between antennas of 0.9 to 1.0 meters.

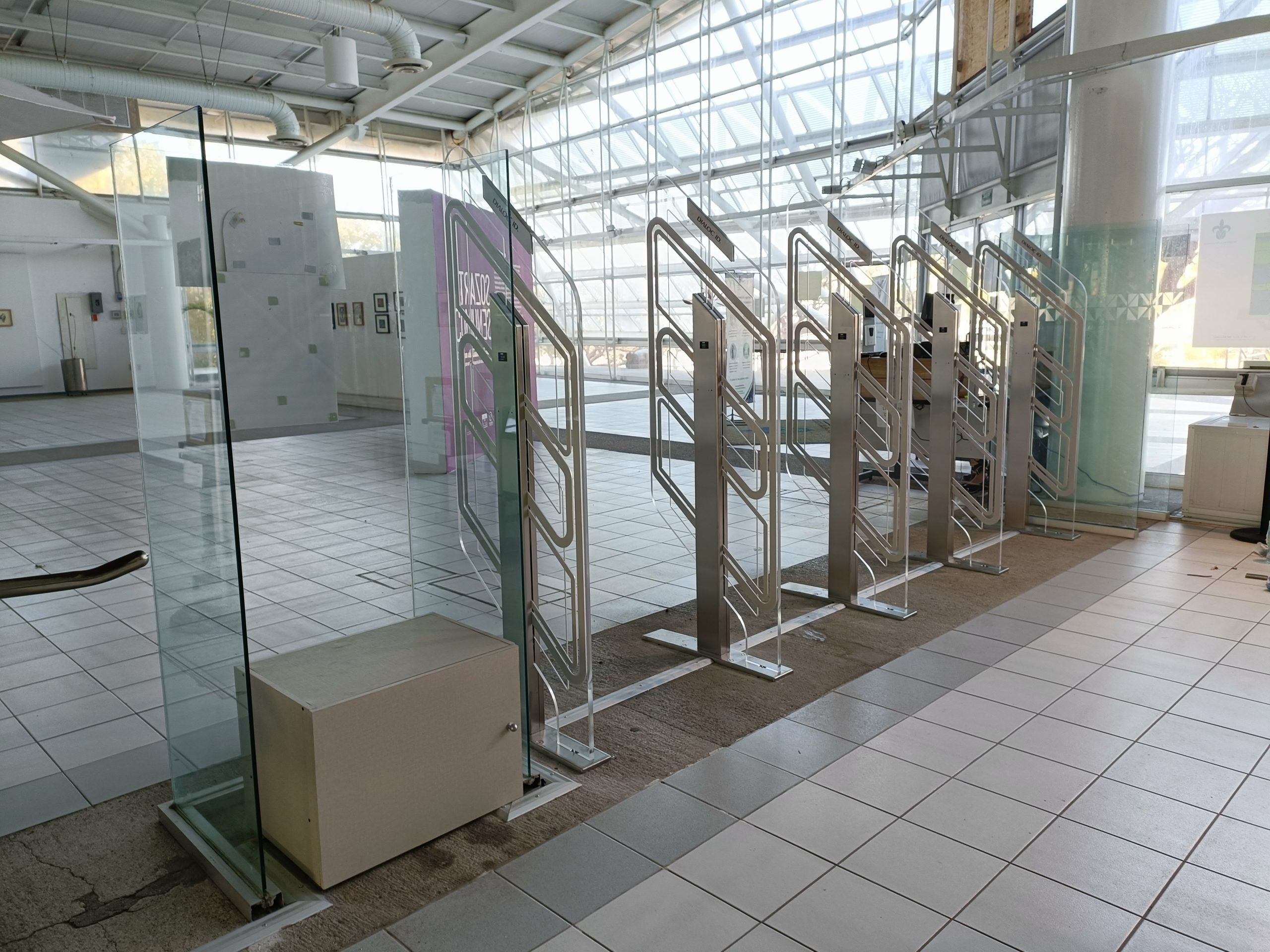

Multiple Antenna Aisles: The standard system for a single aisle consists of 2 antennas and a controller. Three or more antennas can be placed in a line to cover wider entrances.

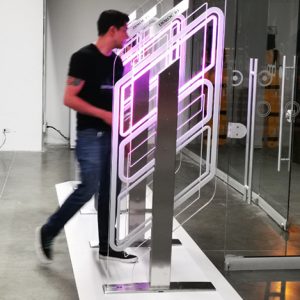

Strip Detection: It has a red LED light alarm that flashes in combination with the audible alarm when it detects an EM tag, blue when it detects an RFID tag, and purple when it reads both simultaneously.
Performance:
Single Aisle – 2 antennas up to 100 cm (with or without people counter)
Double Aisle – 3 antennas up to 200 cm (with or without people counter)
Triple Aisle – 4 antennas up to 300 cm (Hybrid Version) (with or without people counter)

Dimension and Materials

Dimension and Materials

Dimensions:
Centimeters: Width 10 x Depth 66.5 x Height 190
Materials:
Antenna: Transparent PMMA high-density Plexiglas 20 mm with resistance to weather changes and UV rays, with a light transmission rate of 92%.
Base and central tower: Stainless steel.
Weight: 36 kg
Alarms: Visual and audible (adjustable through software).
Interfaces: Ethernet (TCP/IP), USB, RS232.

Specifications

Specifications

  • Bidirectional People Flow Counter (Optional): Includes a digital display, allowing independent registration of traffic entries or exits in your library with statistical data control.
  • Electromagnetic EM Specifications:
  • Operating Frequency: 366 Hz
  • Accepted Strips: All strips from any manufacturer
  • RFID Specifications:
  • Operating Frequency: 13.56 MHz.
  • Transmission Power: 3 W.
  • Accepted Tags: ISO 15693, NXP I-Code 1, NXP SLI X.

Diamond Premium Security System

Code      Model


80104420 – Diamond Premium Security System Hybrid EM and RFID (EM and RFID) with 1 aisle
80104430 – Diamond Premium Security System Hybrid EM and RFID (EM and RFID) with 2 aisles
80104440 – Diamond Premium Security System Hybrid EM and RFID (EM and RFID) with 3 aisles
80104422 – Diamond Premium Security System Hybrid EM and RFID (EM and RFID) with 1 aisle and people counter
80104432 – Diamond Premium Security System Hybrid EM and RFID (EM and RFID) with 2 aisles and people counter
80104442 – Diamond Premium Security System Hybrid EM and RFID (EM and RFID) with 3 aisles and people counter
