Features and Performance
Excellent performance: The 3-D detection of EM strips or RFID tags is fast and can be done at a distance between antennas of 0.9 to 1.0 meters.

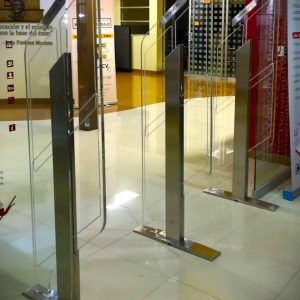

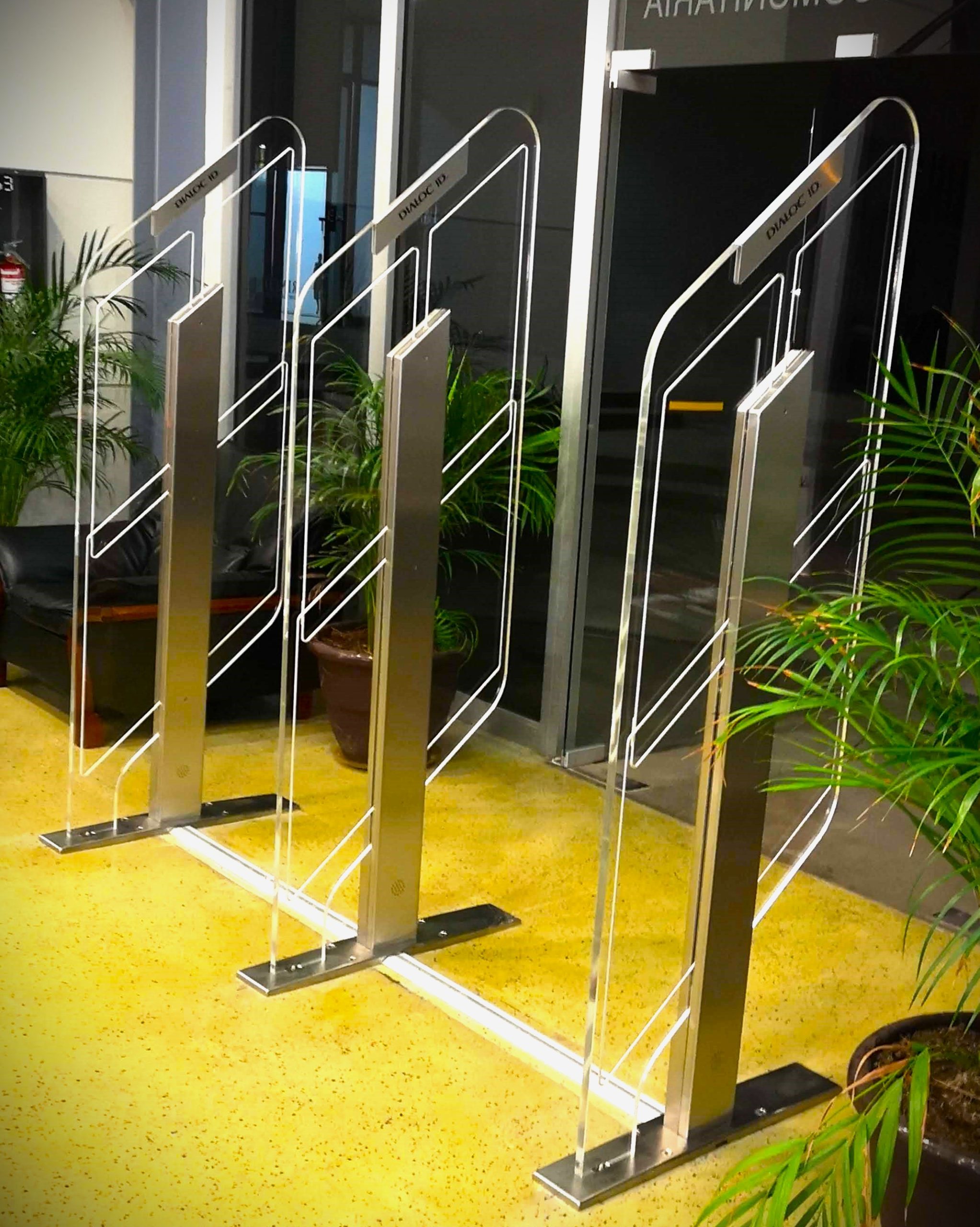

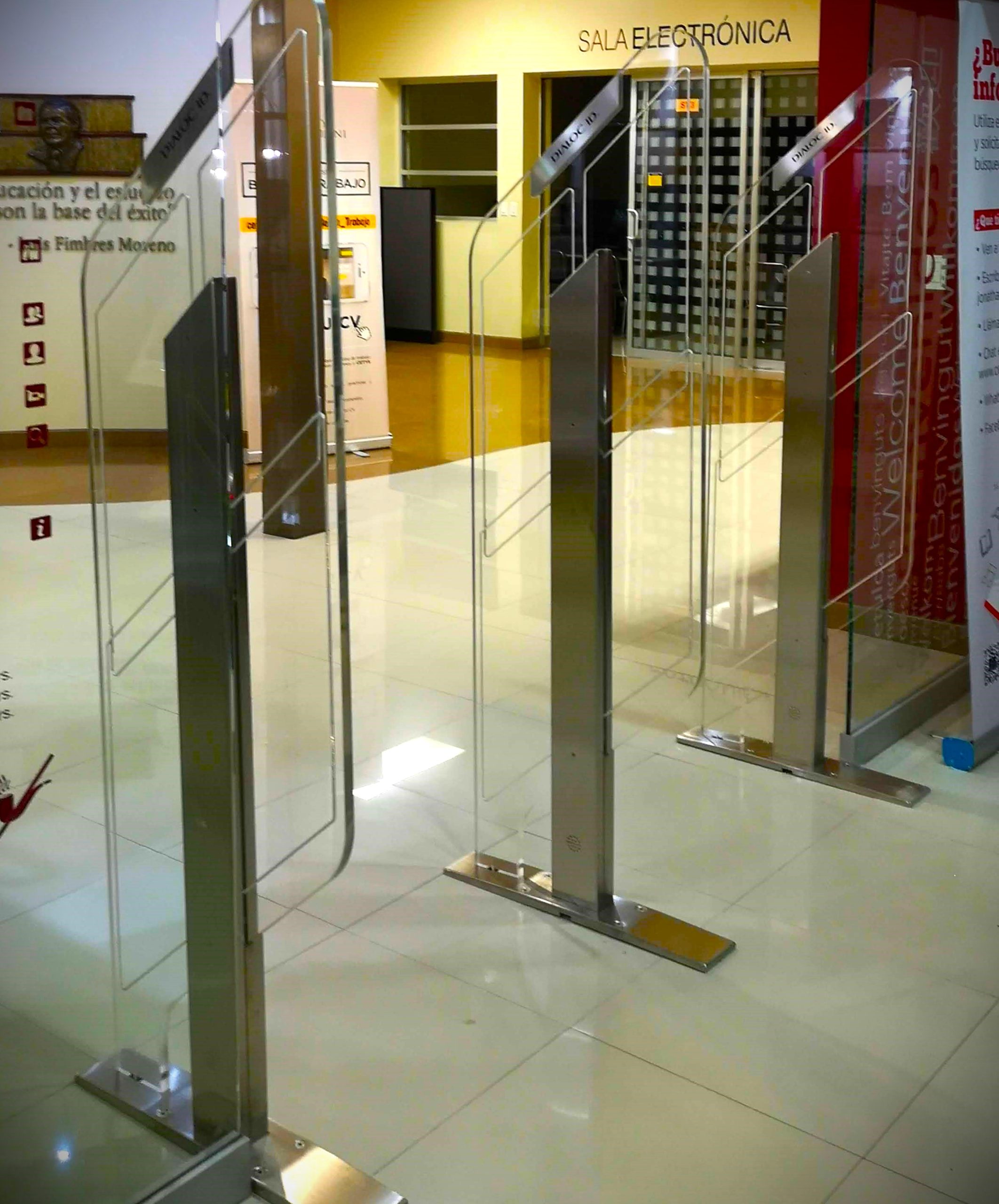

Multiple Antenna Aisles: The standard system for a single aisle consists of 2 antennas and one controller. Three or more antennas can be placed in a line to cover wider entrances.
Strip Detection: It has a red LED light alarm that flashes in combination with the audible alarm when it detects an EM tag, blue when it detects an RFID tag, and purple when it reads both simultaneously.
Performance:
Single Aisle – 2 antennas, up to 100 cm (with or without people counter)
Double Aisle – 3 antennas, up to 200 cm (with or without people counter)
Triple Aisle – 4 antennas, up to 300 cm (Hybrid version) (with or without people counter)
Dimensions and Materials
Dimensions:
Centimeters: Width 10 x Depth 66.5 x Height 190
Materials:
Antenna: High-density transparent Plexiglas PMMA 20 mm with resistance to weather changes and UV rays, with 92% light transmission.
Base and central tower: Stainless steel.
Weight: 34 kg
Alarms: Visual and audible (adjustable via software).
Interfaces: Ethernet (TCP/IP), USB, RS232.
Specifications
- Bidirectional People Flow Counter (Optional): Includes a digital display, allowing independent recording of traffic entries or exits in your library with statistical data control.
- Electromagnetic EM Specifications:
- Operating Frequency: 366 Hz
- Accepted Strips: All strips from any manufacturer
- RFID Specifications:
- Operating Frequency: 13.56 MHz.
- Transmission Power: 3 W.
- Accepted Tags: ISO 15693, NXP I-Code 1, NXP SLI X.
Code Model
80103220 – Diamond Premium Security System RFID, 1 aisle
80103230 – Diamond Premium Security System RFID, 2 aisles
80103222 – Diamond Premium Security System RFID, 1 aisle with people counter
80103232 – Diamond Premium Security System RFID, 2 aisles with people counter
